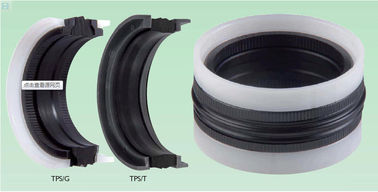

Rubber Piston Oil Seal TPS/G TPS/T Series Combined Oil Seal with High Pressure Resistance, Wear Resistance, and Easy Installation for Hydraulic Seals
| مكان المنشأ | إيطاليا |
|---|---|
| اسم العلامة التجارية | TECNOLAN TECNOTEX Guarnitec |
| رقم الموديل | TPS/G TPS/T |
| الحد الأدنى لكمية | 5 مجموعة |
| الأسعار | Negotiations |
| تفاصيل التغليف | تغليف المصنع الأصلي |
| وقت التسليم | 1-2 يوم عمل ، طلب كبير لمدة 10-15 يومًا بعد الدفع |
| شروط الدفع | تي تي، ويسترن يونيون، كاش، بنك، باي بال، إتش إس بي سي، سيتي بنك. |
| القدرة على العرض | 6000 قطعة / شهر |
تفاصيل المنتج
| اسم المنتج | الختم المختلط، الختم الهيدروليكي، أختام زيت الضغط العالي TECNOLAN TECNOTEX Guarnitec | أسلوب | TPS/G TPS/T |
|---|---|---|---|
| ملكيات | مقاومة الضغط العالي، مقاومة التآكل | نطاق التطبيق | اسطوانة المكبس ، اسطوانة هيدروليكية ، أختام مطاطية هيدروليكية |
| إنتاج الميزات | سهلة التركيب ، مقاومة التآكل العالية ، مقاومة الضغط العالية ، التشوه المنخفض | درجة الحرارة (درجة مئوية) | NBR -40 درجة مئوية ~ 100 درجة مئوية؛ بي تي اف اي -200 درجة مئوية ~ +260 درجة مئوية |
| نموذج الآلة | السفينة ، حفارة ، مضخة ماكينة هيدروليكية رمح دوارة ، منصة الحفر الدوارة ، اللودر الهيدروليكي | الضغط / السرعة | 40 (ميجا باسكال) /0.5 م / ث |
| عينة | متجر مفتوح النافذة، يمكن أن يوفر عينة (مستحقة الدفع) | منطقة المبيعات الرئيسية | إفريقيا ، أوروبا ، أمريكا الجنوبية ، جنوب شرق آسيا ، أمريكا الشمالية ، شمال شرق آسيا ، الشرق الأوسط |
منتوج وصف
Rubber Piston Oil Seal TPS/G TPS/T Series Combined Oil Seal Hydraulic Seals TECNOTEX
Product Overview
Rubber Piston Oil Seal TPS/G TPS/T Series Combined Oil Seal Hydraulic Seals TECNOTEX
Operating Conditions
- Pressure/Speed: 40 MPa / 0.5 m/s
- Temperature: NBR -40℃～100℃; PTFE -200℃～+260℃
- Media: Mineral oil-based hydraulic fluids, Flame retardant hydraulic fluids
- Speed: Maximum reciprocating speed
- Types: Combination seal, Rubber oil seal, Hydraulic Seal
- Main Sales Areas: Africa, South America, Southeast Asia, North America, Northeast Asia, Middle East
Product Features
- Easy to install
- High wear resistance
- High compression resistance
- Low deformation
TPS Size Series Table
| Our Ref. | Other Ref. | D | d | H | S | h | M | F |
|---|---|---|---|---|---|---|---|---|
| TPS 9501 | 098066 | 25.00 | 17.00 | 13.50 | 3.20 | 6.00 | 21.00 | 24.40 |
| TPS 9501/1 | 098055 | 25.00 | 14.00 | 13.50 | 3.20 | 6.00 | 21.00 | 24.40 |
| TPS 9502 | 118086 | 30.00 | 22.00 | 13.50 | 3.20 | 6.00 | 26.00 | 29.40 |
| TPS 9502/1 | 118075 | 30.00 | 19.00 | 13.50 | 3.20 | 6.00 | 26.00 | 29.40 |
| TPS 9503 | 125094 | 32.00 | 24.00 | 15.50 | 3.20 | 6.00 | 28.00 | 31.40 |
| TPS 9503/1 | 125083 | 32.00 | 21.00 | 15.50 | 3.20 | 6.00 | 28.00 | 31.40 |
| TPS 9504 | 137106 | 35.00 | 27.00 | 15.50 | 3.20 | 6.00 | 31.00 | 34.40 |
| TPS 9504/1 | 137094 | 35.00 | 24.00 | 15.50 | 3.20 | 6.00 | 31.00 | 34.40 |
| TPS 9505 | 157125 | 40.00 | 32.00 | 15.50 | 3.20 | 6.00 | 36.00 | 39.40 |
| TPS 9505/1 | 157114 | 40.00 | 29.00 | 15.50 | 3.20 | 6.00 | 36.00 | 39.40 |
| TPS 9506 | 177145 | 45.00 | 37.00 | 15.50 | 3.20 | 6.00 | 41.00 | 44.40 |
| TPS 9507 | 196149 | 50.00 | 38.00 | 20.50 | 4.20 | 6.00 | 46.00 | 49.40 |
| TPS 9507/1 | 216175 | 55.00 | 43.00 | 20.50 | 4.20 | 6.00 | 51.00 | 54.90 |
| TPS 9508 | 236188 | 60.00 | 48.00 | 20.50 | 4.20 | 6.00 | 56.00 | 59.40 |
| TPS 9509 | 248200 | 63.00 | 51.00 | 20.50 | 4.20 | 6.00 | 59.00 | 62.40 |
| TPS 9509/1 | 255208 | 65.00 | 53.00 | 20.50 | 4.20 | 6.00 | 61.00 | 64.40 |
| TPS 9510 | 275228 | 70.00 | 58.00 | 20.50 | 4.20 | 6.00 | 66.00 | 69.40 |
| TPS 9510/1 | 295248 | 75.00 | 63.00 | 20.50 | 4.20 | 6.00 | 71.00 | 74.40 |
| TPS 9511 | 314259 | 80.00 | 66.00 | 22.50 | 5.20 | 6.00 | 76.00 | 79.40 |
| TPS 9511/1 | 334279 | 85.00 | 71.00 | 22.50 | 5.20 | 6.00 | 81.00 | 84.40 |
| TPS 9512 | 354299 | 90.00 | 76.00 | 22.50 | 5.20 | 6.00 | 86.00 | 89.40 |
| TPS 9513 | 393338 | 100.00 | 86.00 | 22.50 | 5.20 | 6.00 | 96.00 | 99.40 |
| TPS 9514 | 433377 | 110.00 | 96.00 | 22.50 | 5.20 | 6.00 | 106.00 | 109.40 |
| TPS 9515 | 472417 | 120.00 | 106.00 | 22.50 | 5.20 | 6.00 | 116.00 | 119.40 |
| TPS 9516 | 492425 | 125.00 | 108.00 | 26.50 | 7.20 | 6.00 | 121.00 | 124.40 |
| TPS 9516/1 | 511445 | 130.00 | 113.00 | 26.50 | 7.20 | 6.00 | 126.00 | 129.40 |
| TPS 9516/2 | 531464 | 135.00 | 118.00 | 26.50 | 7.20 | 6.00 | 131.00 | 134.40 |
| TPS 9517 | 551480 | 140.00 | 123.00 | 26.50 | 7.20 | 6.00 | 136.00 | 139.40 |
| TPS 9518 | 590523 | 150.00 | 133.00 | 26.50 | 7.20 | 6.00 | 146.00 | 149.40 |
| TPS 9519 | 629562 | 160.00 | 143.00 | 26.50 | 7.20 | 6.00 | 156.00 | 159.40 |
| TPS 9520 | 708641 | 180.00 | 163.00 | 26.50 | 7.20 | 6.00 | 176.00 | 179.40 |
| TPS 9521 | 787708 | 200.00 | 180.00 | 31.50 | 9.20 | 6.00 | 196.00 | 199.40 |
| TPS 9522 | 866787 | 220.00 | 200.00 | 31.50 | 9.20 | 6.00 | 216.00 | 219.40 |
| TPS 9523 | 984905 | 250.00 | 230.00 | 31.50 | 9.20 | 6.00 | 246.00 | 249.40 |
Installation Requirements for TPS/G and TPS/T Combined Seals
Seal Structure
- TPS/T (3-piece set): 1 fabric-reinforced rubber main seal ring + 2 POM retainer/support rings (one on each side)
- TPS/G (5-piece set): 1 NBR rubber center ring + 2 thermoplastic support rings + 2 POM guide rings (on the outermost side)
Pre-installation Preparation
- Confirm Model and Direction: TPS is a piston seal (bore seal) used for double-acting hydraulic cylinder pistons and bidirectional pressure bearing. The protrusion/tip lip of the main seal ring faces the oil chamber (high-pressure side); the retainer/guide rings at both ends face outward.
- Cleaning and Inspection: The piston groove and cylinder inner wall shall be free of burrs, sharp edges, rust and iron chips; the groove entrance must have a 15°～30° chamfer/R0.5～1 fillet. Clean with lint-free cloth + special cleaning agent; cotton yarn is strictly prohibited.
- Lubrication Requirements: All seals and groove surfaces shall be lightly coated with hydraulic oil/silicone grease compatible with the medium. Prohibited: Vaseline, ordinary grease, grease containing solid particles.
- Tools and Environment: Special tools: guide sleeve/taper sleeve, pressure ring, plastic crowbar; screwdrivers, sharp-nose pliers and hammers are strictly prohibited from directly contacting the seal. Environment: clean and dust-free, temperature 15～35℃.
Installation Sequence
TPS/T (3-piece set):
- First, place one POM retainer ring flat into one side of the groove
- Install the middle fabric-reinforced main seal ring: expand evenly (expansion amount ≤5%), no sharp folding or twisting. Put into the groove, the tip lip faces the pressure chamber
- Install the other POM retainer ring, fit closely with the main seal ring without gaps or skewness
TPS/G (5-piece set):
From the inner side (oil chamber side) to the outer side of the groove, in order:
- Inner POM guide ring
- Inner thermoplastic support ring
- NBR center seal ring
- Outer thermoplastic support ring
- Outer POM guide ring
Assembly into Cylinder
- The cylinder mouth must have a sufficiently long chamfer/guide sleeve; if no chamfer, use special installation taper sleeve
- The outer circle of the seal is evenly oiled to avoid dry friction
- Push the piston horizontally, coaxially and slowly, apply force evenly
- If the piston has threads/splines, it must be wrapped with a protective sleeve before being put into the cylinder
